Size Variety
Available in a variety of plate sizes including 20in, 28in, 36in, and 48in, compact, extended, and custom.
-
Pioneering Durability & Traditional Precision Equipment
Building one of the most durable index tables on the market for over 60 years.
-
Over Half a Century of Experience
Just one more reason to rely on the dependability and long term dedication of Graham.
Graham Hydraulic, manufacturers of hydraulic equipment and index tables.
Over 60 years of experience in traditional hydraulic manufacturing, product quality, customer service, and competitive leadership.
The Graham Hydraulic Promise
GRAHAM HYDRAULICS, established in 1948, has come to stand for quality in both its products and service after the sale. GRAHAM'S commitment to quality over the years has lead to the dependable line of products that are manufactured today. The personal care in the manufacturing and assembly of GRAHAM products is one reason that we have been in the business for five decades. The GRAHAM INDEX TABLE has proven itself to be one of the most durable index tables on the market when years of dependable service are required.
GRAHAM HYDRAULICS commitment to quality and customer doesn't end with the sale. GRAHAM'S staff is always available and willing to provide technical support. Our parts department prides itself on same day shipment of most parts orders placed before 1:00 pm EST. If you have a specific application, or are in need of particular specifications, contact GRAHAM HYDRAULICS today and see for yourself our commitment to you, the customer.
Graham Hydraulic Automatic Index Tables with Dual Shot Pins with Hydro Lift and Hydro Clamp
Accuracy

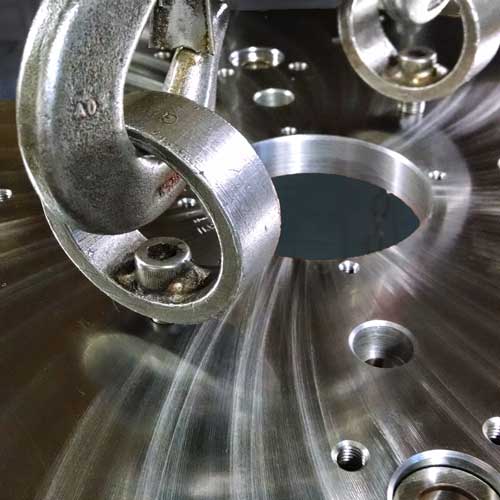

Index within ± 0.001 at the shot pin radius.
Construction
All major components are manufactured in the United States.
Specifications

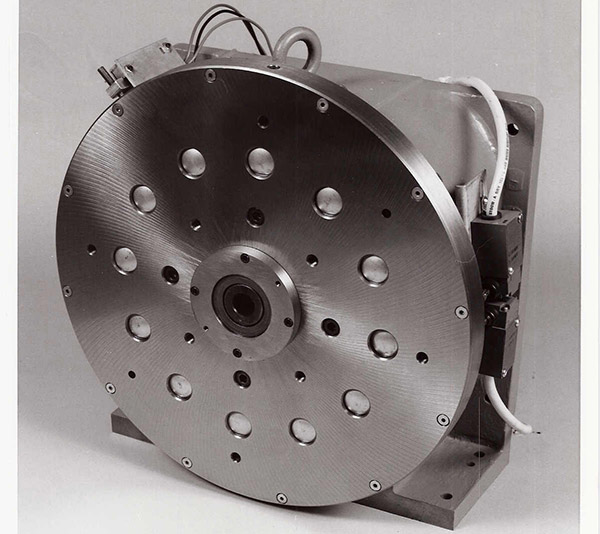

Up to 10,000 lbs. of clamp pressure and lift load.
Dual Shot Pins
The dual shot pins assure the accuracy of the dial plate and support long term durability and precision reliability. The hollow steel center post can be used for piping air, oil, or coolant to the fixtures or the work pieces.
Hydro Lift
The hydro lift actually lifts the plate slightly so that the index table can carry a heavy load without dragging, while the deceleration unit will slow down the table just before the final location.
Hydro Clamp
The dual shot pins, combined with the hydro clamp, ensure that the top plate is securely held in the precise location while the work is performed with reliable repeatability, even on large heavy tooling plates.
